Why Your Steel Drum Production Line’s Spray Booth Matters More Than You Think

Let me start with a question I get from factory owners all the time: "Why can't I just use any spray booth for my steel drums?"

It’s a fair question. After all, paint is paint, right? Not exactly. I've seen too many production lines struggle because someone

 bought the wrong painting setup, and trust me, fixing that mistake later is way more expensive than getting it right the first

 time.

Here’s the thing about steel drums, whether they’re 210-liter closed-top drums or smaller 60-liter open-top containers: the

paint job isn't just about making them look pretty. That coating is the first line of defense against rust and corrosion, especially

 when these drums end up holding chemicals, paints, or oils. If your spray booth isn't up to the task, you're shipping out

drums that could fail on your customer. And in my experience, that’s a reputation hit no one wants to take.

So what makes a spray booth right for a steel drum production line? First, you need to think about the whole painting process,

 not just the spraying part. A proper steel drum painting system includes a few key stages: surface pretreatment, the actual

spray booth, a flash-off zone, and a curing oven. The pretreatment stage is where you clean and phosphate the drums, which

is critical because paint won’t stick to a dirty surface. I can't tell you how many times I've seen factories try to skip this and

then wonder why their paint peels off. It’s the difference between a drum that lasts for years and one that looks like a mess

 after three months.

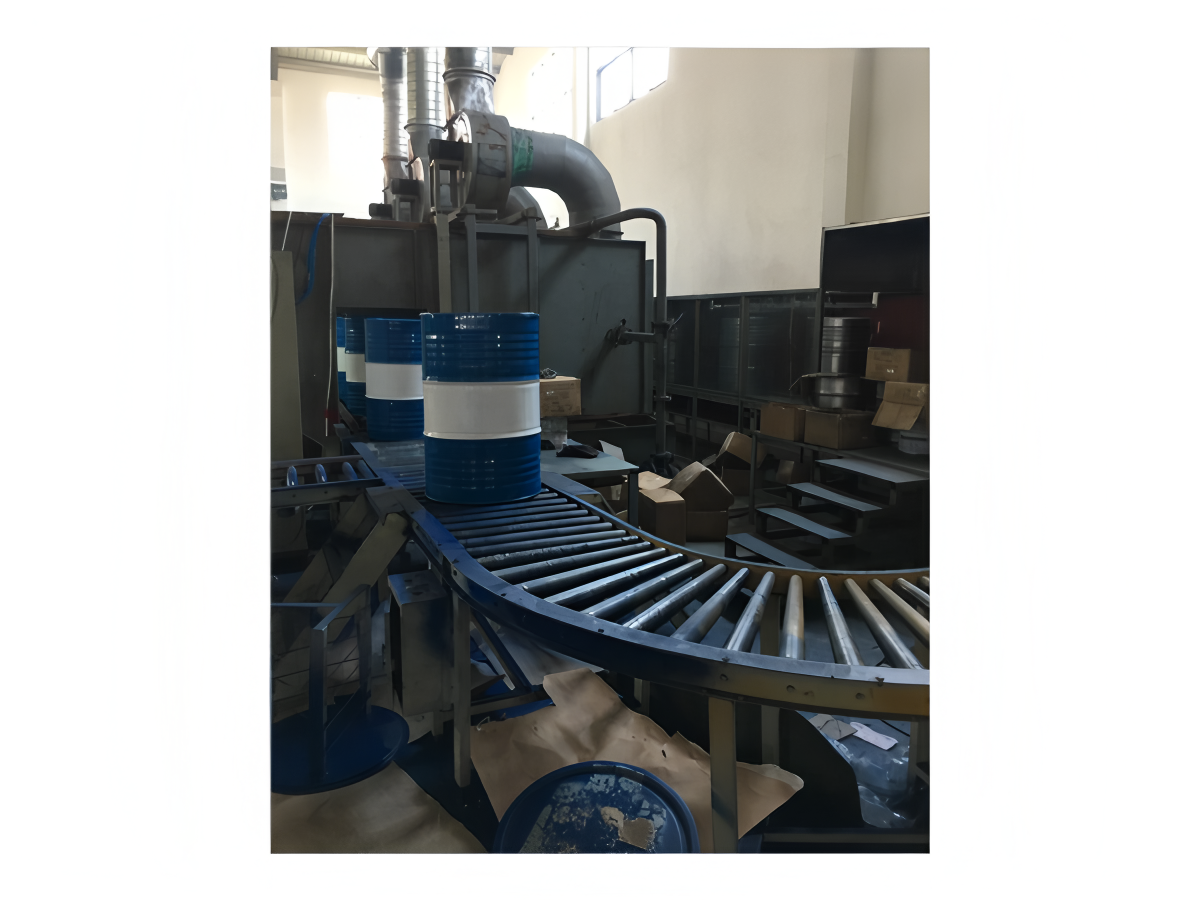

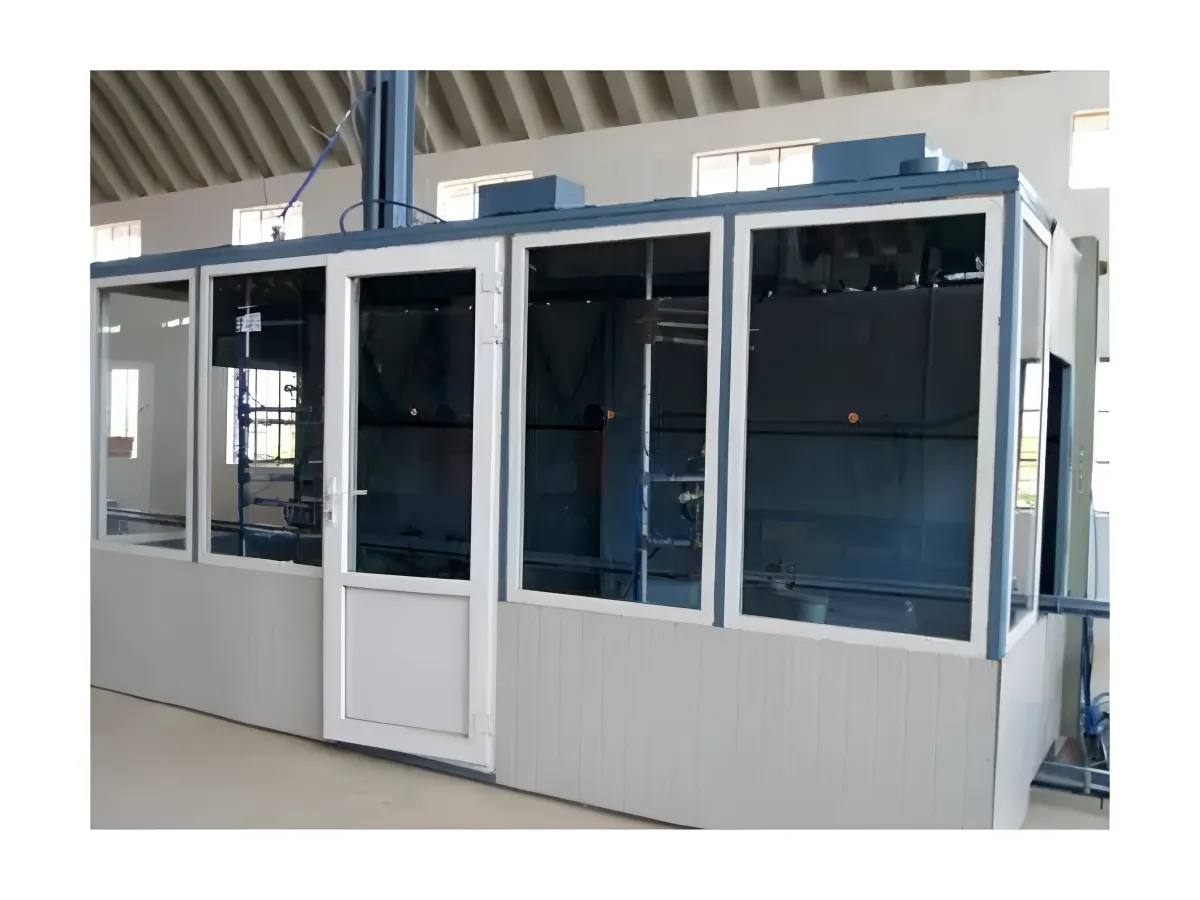

Now, the star of the show is the spray booth itself. When we’re talking about steel drums, we almost always recommend an

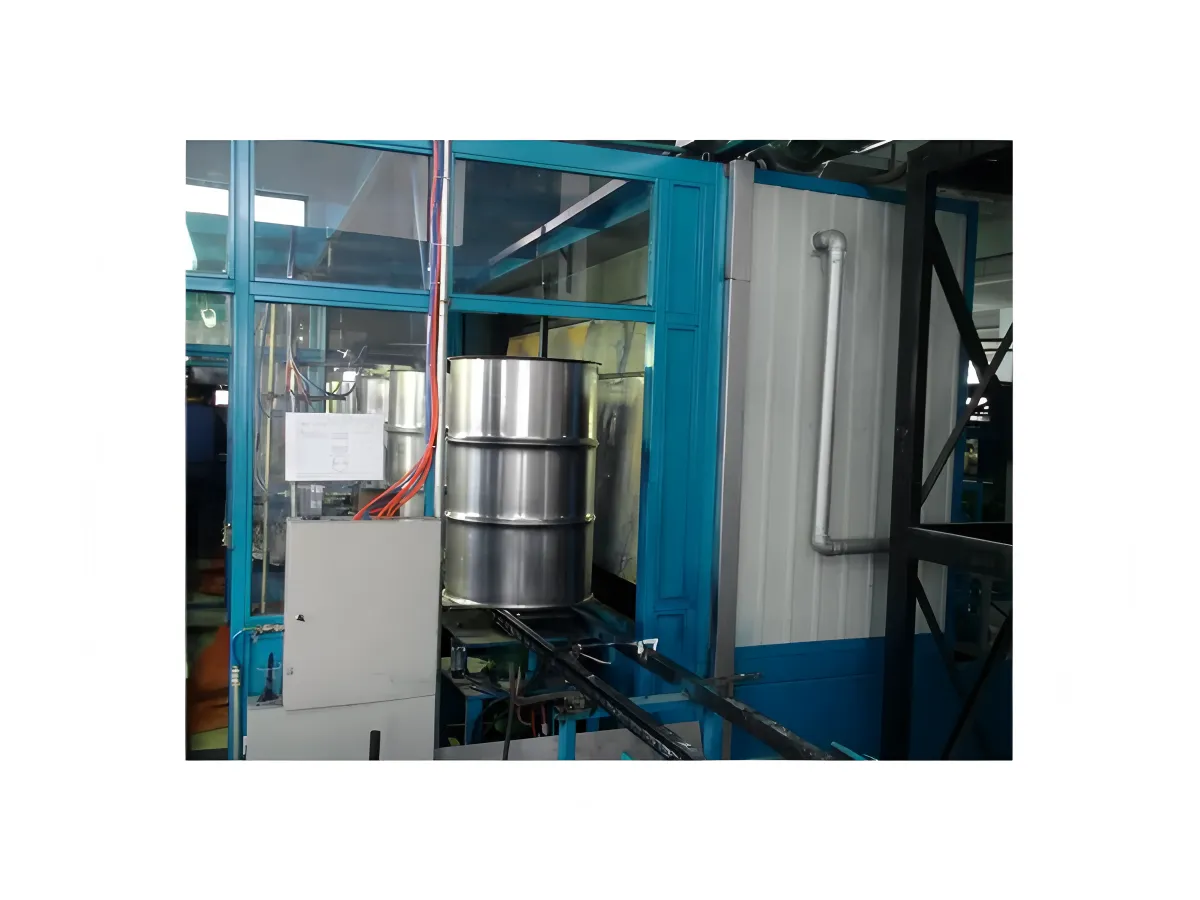

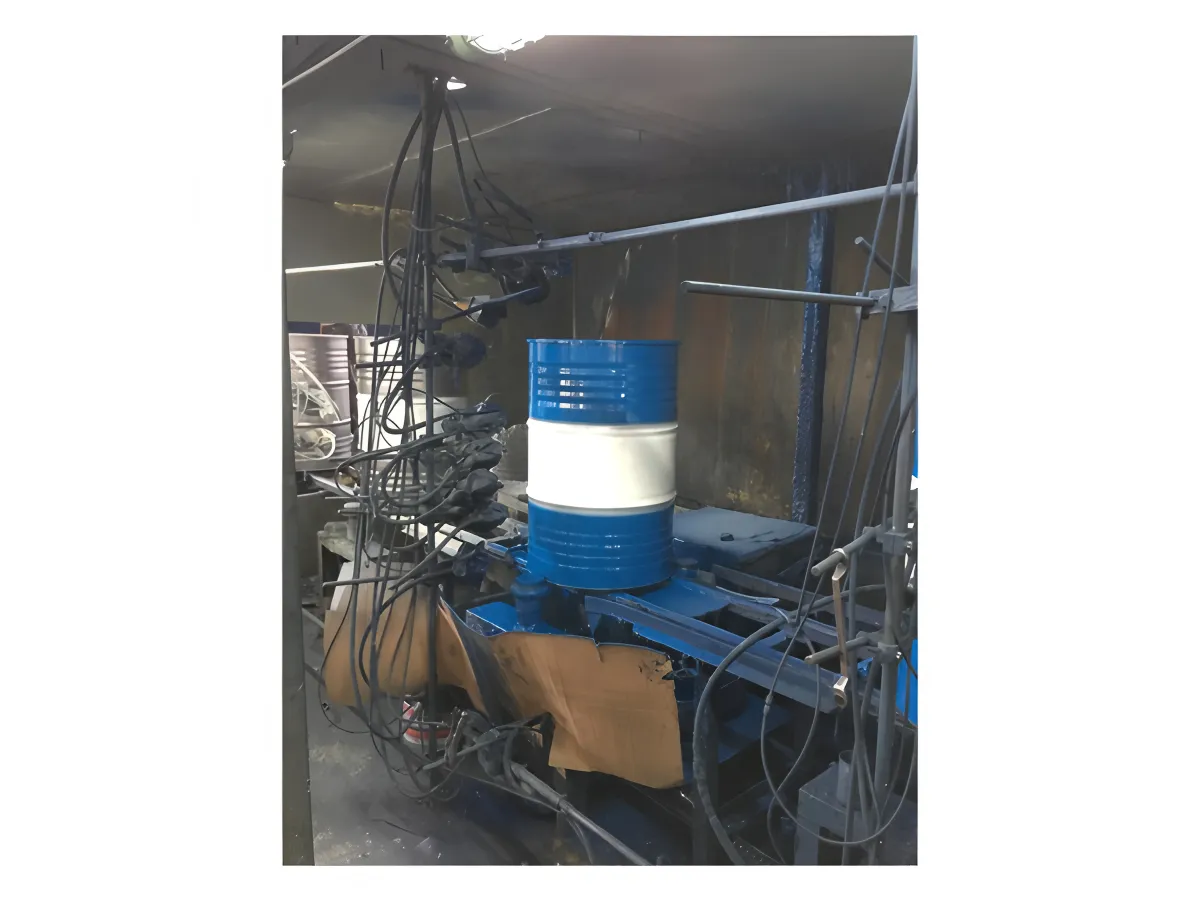

automatic spray booth, not a manual one. Here’s why: consistency. A fully automatic spray painting booth will rotate each

steel drum at a precise, constant speed while the spray guns do their work. This ensures the coating thickness is uniform

across the entire drum surface. If you try to do this manually, you’ll get runs, thin spots, and a lot of wasted paint. And

speaking of wasted paint, that’s where the booth design really matters. An automatic booth with a properly designed

ventilation system will have a controlled airflow that captures overspray. Some booths use dry filters, like pleated cardboard

walls that catch paint particles through inertia separation—these can last three to five times longer than regular fiberglass

filters. Others use water-wash systems that scrub paint out of the air. Either way, you're protecting your workers and your

workshop from paint fumes and sticky dust.

Of course, you can't talk about painting without talking about the spray technology itself. Most steel drum manufacturers

today are using pneumatic airless spray systems, like the ones from Graco or Italian brands. Why airless? Because it pushes

 paint through a small tip at extremely high pressure, which breaks it into tiny particles without needing compressed air.

The result is a smooth finish with very little overspray. It’s also faster and wastes less paint, especially when you’re dealing

with those thick, high-viscosity coatings that are common for industrial steel drums. And if you’re thinking about automation,

you can even add oscillating systems that move the spray guns up and down so they coat the drums evenly as they move

through the booth on a conveyor.

Let’s also talk about what happens after the spray booth. Once the drum is painted, it needs to go through a flash-off unit

where the solvents start to evaporate, and then a curing oven where the paint is baked to its final hardness. The temperature

and time will depend on the type of coating you’re using. Some modern lines are even switching from solvent-based

coatings to powder coatings or water-based options to meet stricter environmental regulations. But that’s a whole other

 conversation for another day.

One more thing: when you’re choosing a spray booth for your steel drum production line, make sure you’re looking at one

that can handle your production speed. If you’re running a high-speed line that pumps out 8 to 10 drums per minute, you

 can't squeeze them through a small batch booth. You’ll need something that’s integrated right into your conveyor system,

 with automated loading and unloading. And don’t forget the ancillary equipment, like air compressors and control panels

that interlock with the spray guns for safety.

Look, I’ve been around steel drum manufacturing long enough to know that the painting stage is often treated as an

afterthought. But it shouldn’t be. If you get your spray booth wrong, you’ll end up with rework, customer complaints, and

a lot of wasted paint. If you get it right, you’ll have a reliable, consistent coating that protects your product and gives your

 buyers confidence. And that’s the kind of reputation that sells drums.
